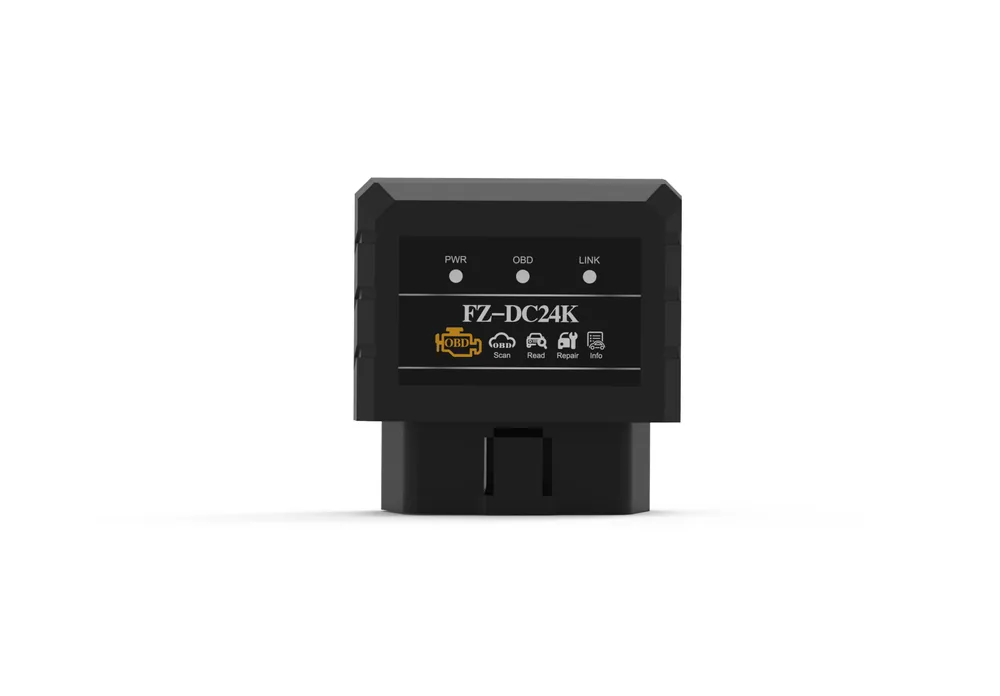

KS-8813 · DC24K Series OBD2 Adapters
FZ-DC24K Tire-Tread Shell OBD2 Scanner 2026 New

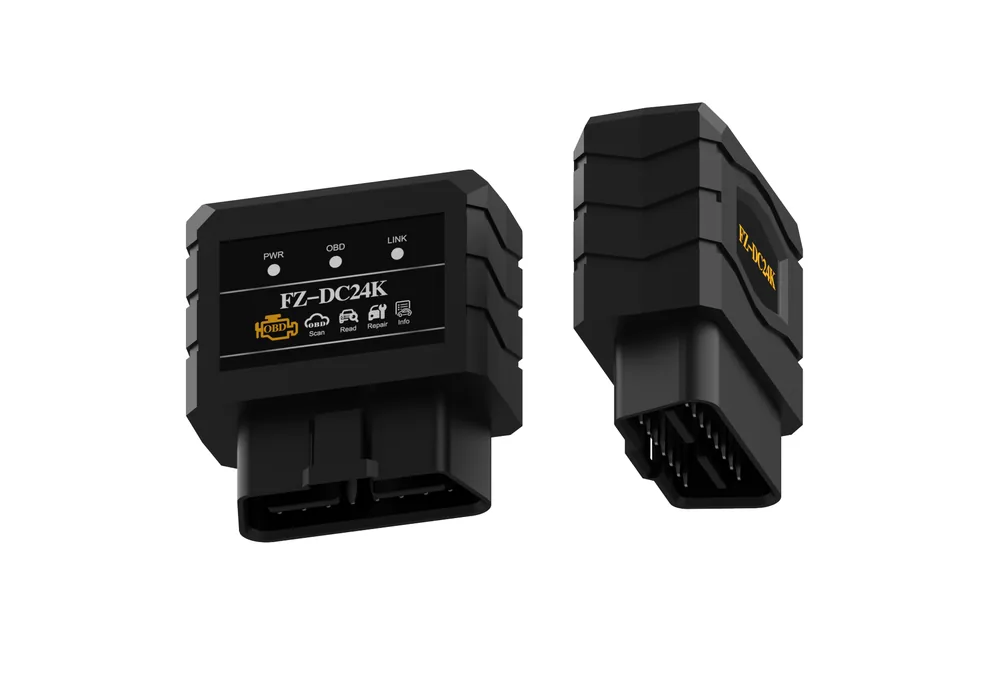

Tire-tread housing with PWR / OBD / LINK status LEDs, Nation chip, Bluetooth 5.0+ and hybrid support.
PWR / OBD / LINK LEDsBluetooth 5.0+ · Nation chipHybrid vehicle support
| Model | FZ-DC24K (tire-tread shell) |
|---|---|
| Chip | Nation |
| Connection | Bluetooth 5.0+ |
| Systems | iOS · Android |
| Operating voltage | 9–30V |
| Power | 320 mW |
| Color | Black |
| Product size | 5.0 × 5.3 × 2.45 cm |
| Net weight | 25.4 g |
| Package | Adapter + user manual |
| PCS / carton | 250 pcs |
| Current | 20 mA |
| Certification | CE · RoHS |
| Carton size | 50 × 31 × 35 cm |
| MOQ (custom brand) | 1,000 pcs |
Wholesale / OEM inquiry
Color, packaging box and sticker customization with your logo. MOQ 1,000 pcs for custom brand; samples available.
Color, packaging box and sticker customization with your logo. MOQ 1,000 pcs for custom brand; samples available.
Features
Key features
- Fully compliant with OBD II / EOBD standards
- Wide 9–30V input: works on 12V and 24V gasoline vehicles and some diesel vehicles
- DC-DC power supply with up to 95% efficiency for ultra-low power consumption
- Independent CAN controller, independent MCU and independent radio
- Upgradable firmware
- Live engine data: RPM, ignition timing, fuel trim, coolant temp, fuel consumption, voltage, freeze frame, monitor tests, acceleration test, MIL status, HUD mode and trip analysis
- Compatible with mainstream third-party OBD apps
- Open private protocols, supports hybrid vehicles (e.g. Toyota Prius, Li Auto L8)
- OEM cooperation: customized exclusive functions available on request
Supported protocols
- ISO 9141-2 (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (fast init, 10.4 kbaud)
- ISO 15765-4 CAN (11 bit ID, 500 kbaud)
- ISO 15765-4 CAN (29 bit ID, 500 kbaud)
- ISO 15765-4 CAN (11 bit ID, 250 kbaud)
- ISO 15765-4 CAN (29 bit ID, 250 kbaud)
- SAE J1850 PWM (41.6 kbaud)
- SAE J1850 VPW (10.4 kbaud)
- SAE J1939
