KS-8812 · DC24K Series OBD2 Adapters

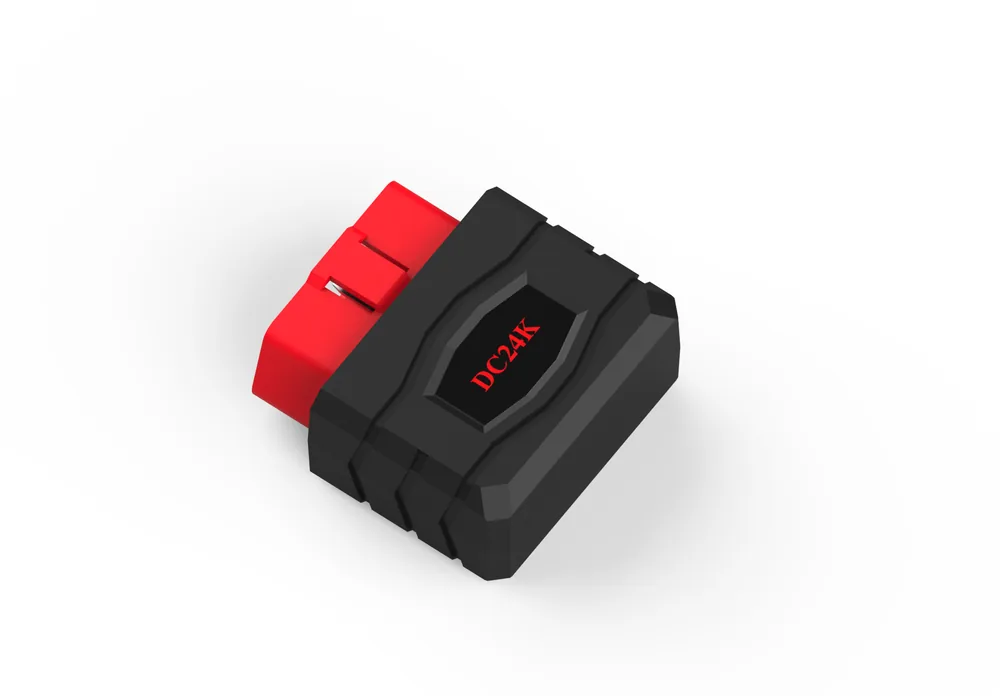

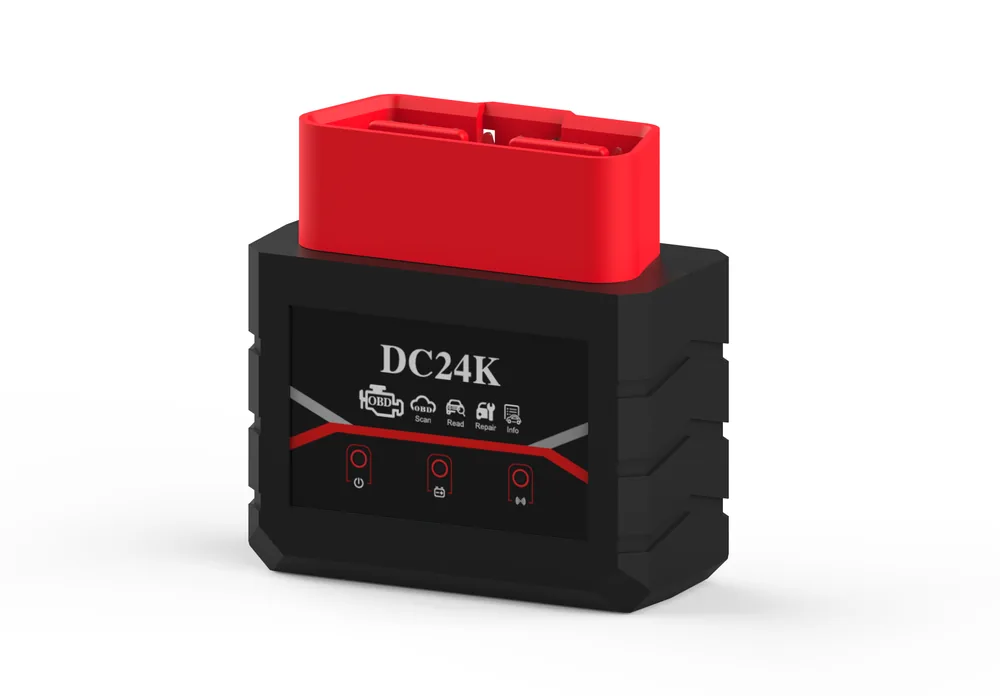

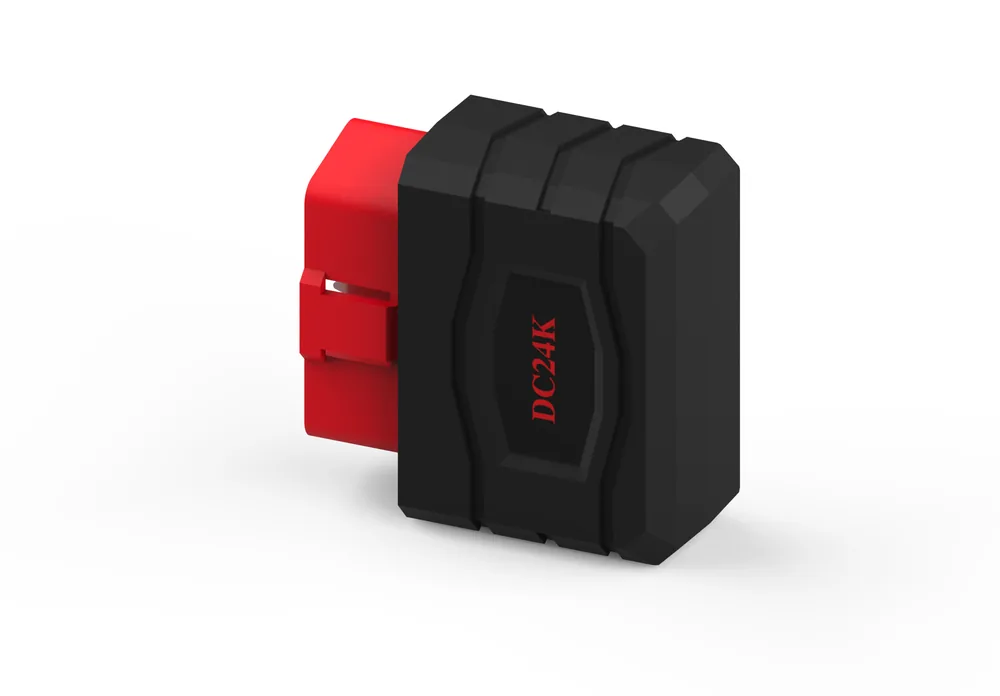

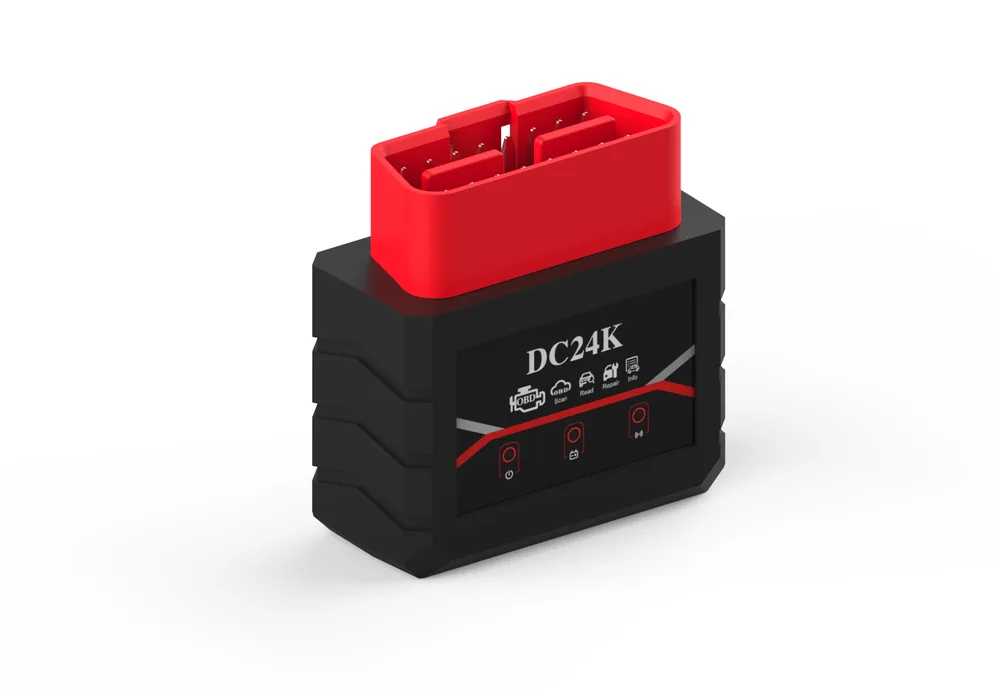

DC24K Tire-Tread Shell Bluetooth OBD2 Adapter 2026 New
Patented tire-tread housing design, PIC25K80 chip and Bluetooth 5.4 for iOS & Android.
Patented housing designBluetooth 5.4 · PIC25K809–30V input
| Model | DC24K (tire-tread shell) |
|---|---|
| Chip | PIC25K80 |
| Connection | Bluetooth 5.4 |
| Systems | iOS · Android |
| Operating voltage | 9–30V |
| Power | 320 mW |
| Color | Black / red |
| Product size | 5.0 × 5.3 × 2.45 cm |
| Net weight | 25.4 g |
| Package | Adapter |
| PCS / carton | 250 pcs |
| Current | 20 mA |
| Certification | CE · RoHS |
| Carton size | 50 × 31 × 35 cm |
| MOQ (custom brand) | 1,000 pcs |
Wholesale / OEM inquiry
Color, packaging box and sticker customization with your logo. MOQ 1,000 pcs for custom brand; samples available.
Color, packaging box and sticker customization with your logo. MOQ 1,000 pcs for custom brand; samples available.
Features
Key features
- Fully compliant with OBD II / EOBD standards
- Wide 9–30V input: works on 12V and 24V gasoline vehicles and some diesel vehicles
- DC-DC power supply with up to 95% efficiency for ultra-low power consumption
- Independent CAN controller, independent MCU and independent radio
- Upgradable firmware
- Live engine data: RPM, ignition timing, fuel trim, coolant temp, fuel consumption, voltage, freeze frame, monitor tests, acceleration test, MIL status, HUD mode and trip analysis
- Compatible with mainstream third-party OBD apps
- Patented exterior design
Supported protocols
- ISO 9141-2 (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (fast init, 10.4 kbaud)
- ISO 15765-4 CAN (11 bit ID, 500 kbaud)
- ISO 15765-4 CAN (29 bit ID, 500 kbaud)
- ISO 15765-4 CAN (11 bit ID, 250 kbaud)
- ISO 15765-4 CAN (29 bit ID, 250 kbaud)
- SAE J1850 PWM (41.6 kbaud)
- SAE J1850 VPW (10.4 kbaud)
- SAE J1939
